20mm - 80mm Thermal label printer

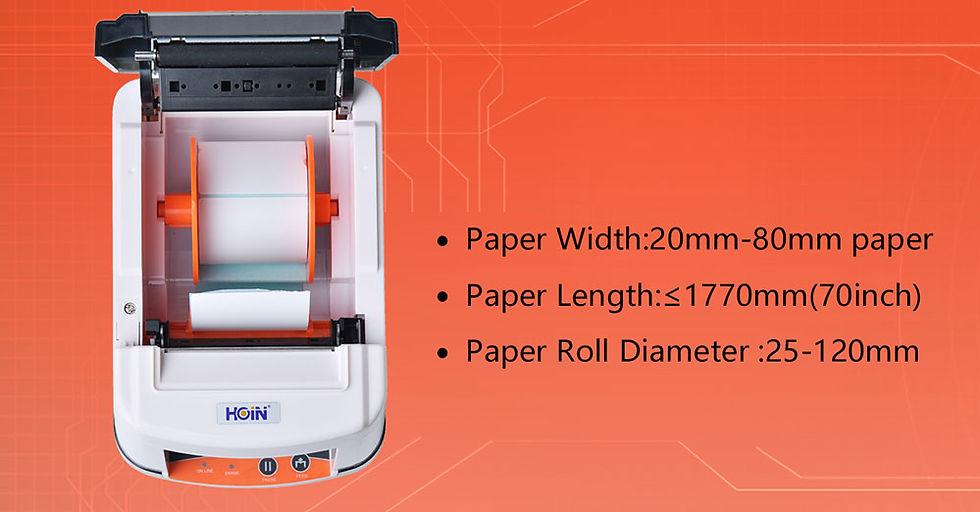

HOP-HL80 80mm Thermal Label Printer

SKU: 366615376135191
  • Resolution

    203 DPI

    Print Method

    Thermal Print

    Print Speed(Max)

    127 mm (5") / s,

    Print Width(Max)

    76mm (3”)

    Print Length(Max)

    1770 mm (70”)

    Printer Size

    225 mm (D) x151 mm (W) x151 mm (H)

    Printer Weight


    Label Paper Roll Diameter


    Paper Direction

    Paper Up


    32-bit CPU


    n 8M Flash memory

    n 8M SDRAM


    USB (Standard)

    Bluetooth (Optional)



    n Input: AC 100-240V

    n Output: DC 24V-2.5A

    User Indicator

    Standard Model

    n 2 Press Buttons

    n 1 LED Blue Light、1 LED Red Light


    n Gap Sensor

    n Cover Opening Sensor

    n Printer Head Temperature Sensor

    Paper Type

    Thermal paper, Thermal adhesive paper, etc

    Media Type


    Media Width

    20 mm ~ 82 mm

    Media Thickness

    0.06 mm ~  0.25 mm

    Label Length

    10 mm ~ 2286 mm

    Paper off type

    Tear off & peel off

    Gap Height

    Minimum 2 mm

    Print out deviation

    Vertical: 1 mm maximum.

    Horizontal: 1 mm maximum.

    Internal font

    n 1 set of alphanumeric fonts

    Code Page

    n Codepage 437 (English - US)

    n Codepage 737 (Greek)

    n Codepage 850 (Latin-1)

    n Codepage 852 (Latin-2)

    n Codepage 855 (Cyrillic)

    n Codepage 857 (Turkish)

    n Codepage 860 (Portuguese)

    n Codepage 861 (Icelandic)

    n Codepage 862 (Hebrew)

    n Codepage 863 (French Canadian)

    n Codepage 864 (Arabic)

    n Codepage 865 (Nordic)

    n Codepage 866 (Russian)

    n Codepage 869 (Greek 2)

    n Codepage 950 (Traditional Chinese)

    n Codepage 936 (Simplified Chinese)

    n Codepage 932 (Japanese)

    n Codepage 949 (Korean)

    n Codepage 1250 (Latin-2)

    n Codepage 1251 (Cyrillic)

    n Codepage 1252 (Latin-1)

    n Codepage 1253 (Greek)

    n Codepage 1254 (Turkish)

    n Codepage 1255 (Hebrew)

    n Codepage 1256 (Arabic)

    n Codepage 1257 (Baltic)

    n Codepage 1258 (Vietnam)

    n ISO-8859-1: Latin-1 (Western European)

    n ISO-8859-2: Latin-2 (Central European)

    n ISO-8859-3: Latin-3 (South European)

    n ISO-8859-4: Latin-4 (North European)

    n ISO-8859-5: Cyrillic

    n ISO-8859-6: Arabic

    n ISO-8859-7: Greek

    n ISO-8859-7: Hebrew

    n ISO-8859-9: Turkish

    n ISO-8859-10: Nordic

    n ISO-8859-15: Latin-9

    n UTF-8

    Bar Code

    1D bar code

    Code128 subsets A.B.C,Code128UCC, EAN128, Interleave 2 of 5,Code 39,Code 93, EAN-13, EAN-8, Codabar, POSTNET, UPC-A, UPC-E, EAN and UPC 2(5) digits, MSI, PLESSEY, China Post, ITF14, EAN14, Code 11, TELPEN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS

    2D bar code

    CODABLOCK F mode, DataMatrix, Maxicode, PDF-417, Aztec, MicroPDF417, QR code, RSS Barcode (GS1 Databar)

    Rotation on font and Bar code

    0°, 90°, 180°, 270°


    TSPL-EZ emulation


    Operation Environment: -10 ~ 50 °C (14 ~ 122 °F), Humidity:10 ~ 90% No condensing

    Storage Environment: -40 ~ 60 °C (-40 ~ 140 °F), Humidity:10 ~ 90% No condensing


    n CD (Windows label editing software, Driver and User Manual)

    n Fast installation guide

    n Power adaptor

    n Power cable

    n USB cable


    n One year warranty

    n Printer head 50KM or One year warranty. Depends on which reach first.

    n Printer roller 50KM or One year warranty. Depends on which reach first.
